Specifications |
Maximum input voltage |
DC 60 kV or AC peak*
Single-shot pulse of 80 kV, standard pulse wave |
Bandwidth |
DC to 50 MHz, within -3 dB |
Rise time |
7 ns or less (for probes only) |
Input RC |
1,000 MW ±5%
//5 pF ±2 pF |
Attenuation |
2000:1 ±5% |
Cable length |
Approx. 4 m |
Connector |
BNC type |
Used for |
Oscilloscope with input RC: 1 MW,
10 to 40 pF |
Weight |
Approx. 3.2 kg (including accessories) |
Accessories |
Matching box, clamp, probe tip, ground lead,
adjusting screwdriver, accessory bag |
Options
|
High-voltage probe stand SK-301 (produced
upon order)

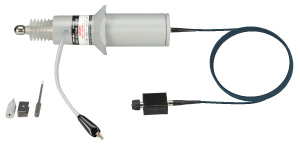

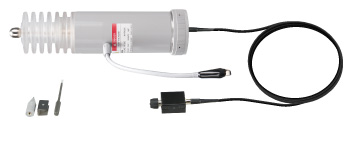

The SK-301 can be used with both the HV-P60A/60 and the HV-P30A/30.
It is attached by turning the probe bracket upside down (for
HV-P60A/HV-P60/HV-P30A/HV-P30). |

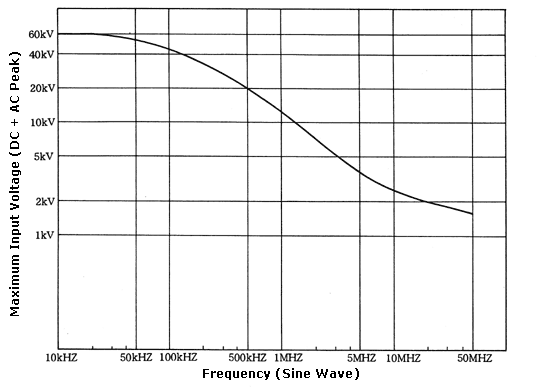

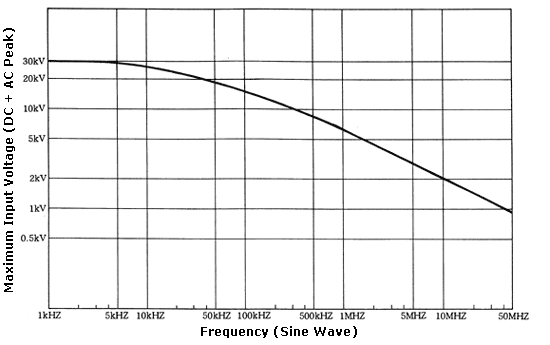

* The P-P voltage drops if the CW is 100 kHz or
greater. |
