Switching current waveform and pulse response characteristics of power devices Current measurements of inverter system AC current measurements (at large DC offset) Impulse high current measurements Bus Bar high current measurements		Watch Application Video

Features and Main Specifications

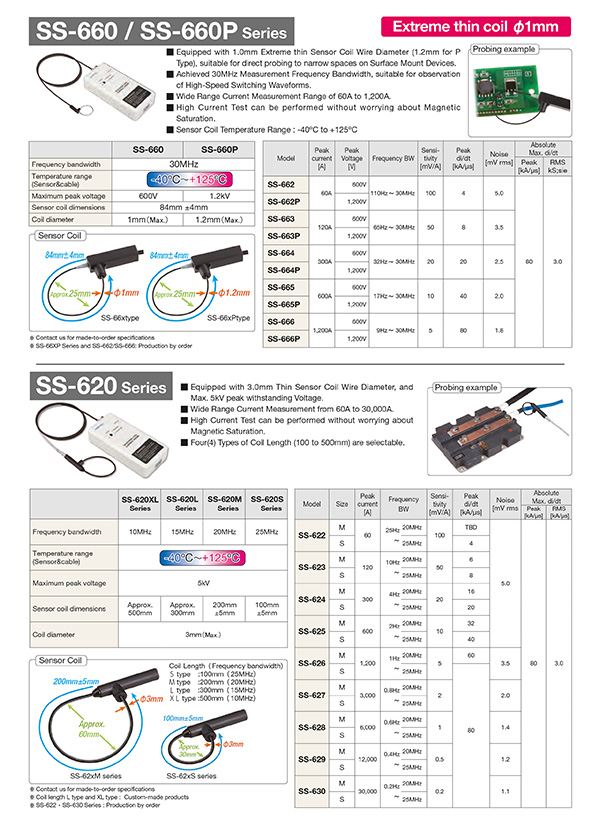

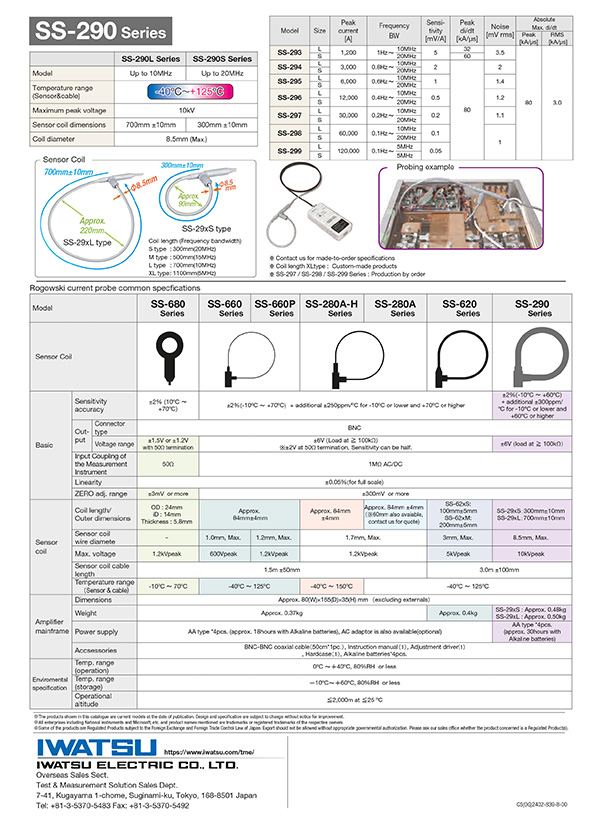

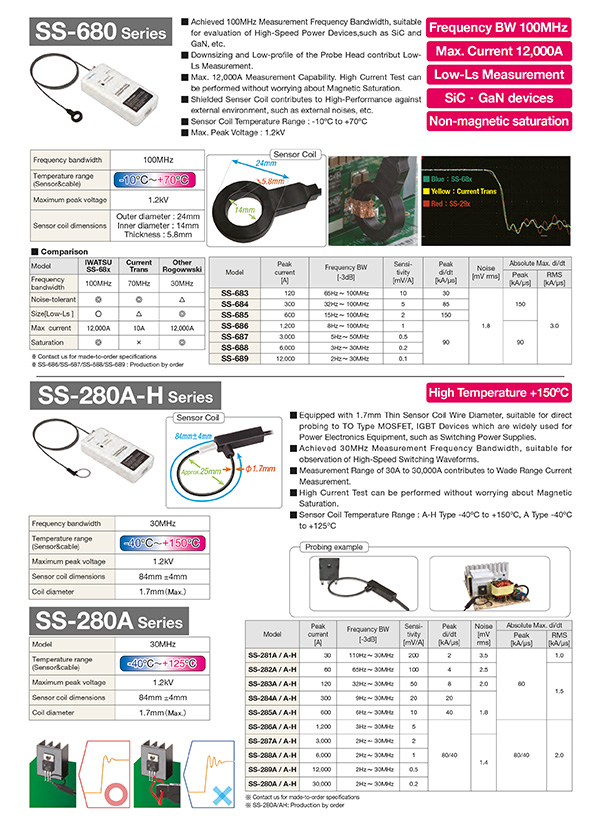

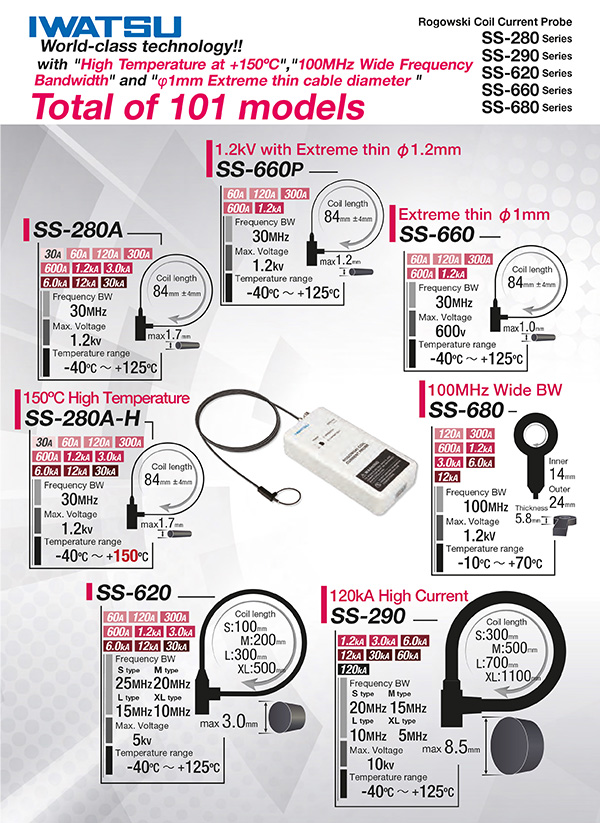

Model Appearance, specifications SS-680 Series   peak current : 600A Maximum frequency : 100MHz Maximum voltage : 1.2kV Sensor cable length : 1.5m Operation temp. -10ºC to 70ºC SS-660 Series   peak current : 600A Maximum frequency : 30MHz Maximum voltage : 600V Sensor cable length : 1.5m Operation temp. -40ºC to 125ºC Customising examples Urtla thin sensor coil high withstanding voltage (1.2kV) Contact us for made-to-order specifications ustomising examples   peak current : 1.2kA Maximum frequency : 30MHz Maximum voltage : 1.2kV Sensor cable length : 1.5m Operation temp. -40ºC to 125ºC SS-280A-H Series   peak current : 12kA Maximum frequency : 30MHz Maximum voltage : 1.2kV Sensor cable length : 1.5m Operation temp. -40ºC to 150ºC SS-280A Series   peak current : 12kA Maximum frequency : 30MHz Maximum voltage : 1.2kV Sensor cable length : 1.5m Operation temp. -40ºC to 125ºC SS-620S Series   peak current : 12kA Maximum frequency :   Coil Length 100mm type : 25MHz Maximum voltage : 5kV Sensor cable length : 3m Operation temp. -40ºC to 125ºC SS-620M Series   peak current : 12kA Maximum frequency :   Coil Length 200mm type : 20MHz Maximum voltage : 5kV Sensor cable length : 3m Operation temp. -40ºC to 125ºC SS-290S Series   peak current : 12kA Maximum frequency :   Coil Length 300mm type : 20MHz Maximum voltage : 10kV Sensor cable length : 3m Operation temp. -40ºC to 125ºC SS-290L Series   peak current : 12kA Maximum frequency :   Coil Length 700mm type : 10MHz Maximum voltage : 10kV Sensor cable length : 3m Operation temp. -40ºC to 125ºC
