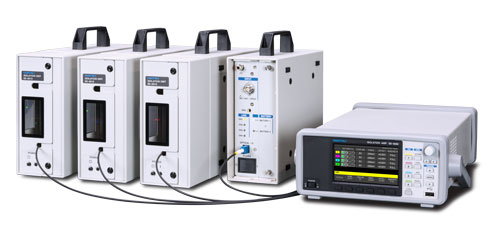

Performs waveform measurements with high resolutions and in safe manner under high voltage environment in systems that isolate Input/Output terminals through optical insulation.

　

Measuring Targets

Contributes to the safety for high voltage testing Increases measurement quality with differential probes Measures noise resistance very effectively Supports wide range of objects such as lightning surge and charging tests etc. Measures distant points (Switches, Transportation equipment etc.) Analyzes failure factors when multiple abnormal operations happened at distant places. The Isolation Unit can be set at each place up to 4 sets in total.

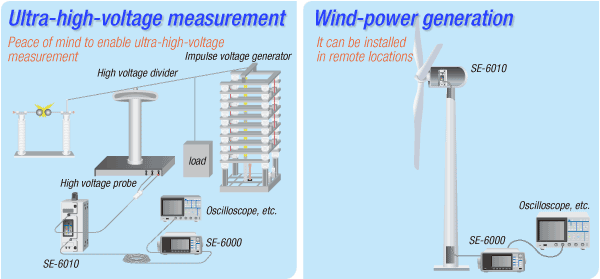

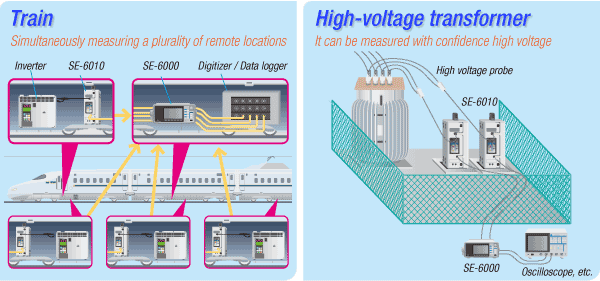

Applications

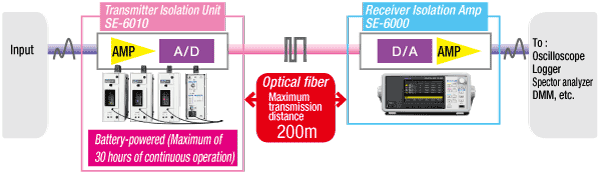

Connection image
