■ High-Resolution Digital Oscilloscope
	■ 12-bit High-Resolution 　(up to High Res mode 16-bit) ■ Max. 8 Analog channels ■ 15.6-inch LCD touch display ■ Off-Line Viewer    (DS-8000 Viewer) 5GS/s Max. 120Mpoints 1GHz 8ch DS-8108 1GHz 4ch DS-8104 500MHz 8ch DS-8058 500MHz 4ch DS-8054 350MHz 8ch DS-8038 350MHz 4ch DS-8034

■	Always high resolution 12bit ＆low noise Max. 16bit equivalent (High Res mode）

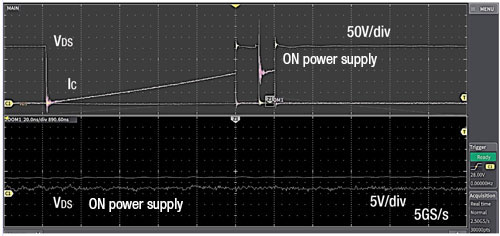

12bit ADC Up to 16-bit waveform display in High Res mode ●Application: It can be used in the R&D, Production and Quality assurance Dept. of automobiles, components, and semiconductors, such as switching waveforms of power devices and lightning surge waveform.
High-Resolution display comparison

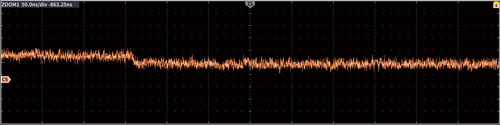

8bit
	The noise is high due to the resolution when enlarged at 8bit.

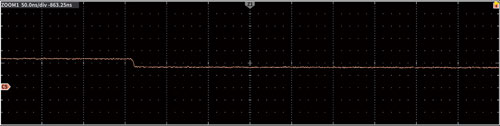

16bit
	It can be seen in more detail at 16bit.

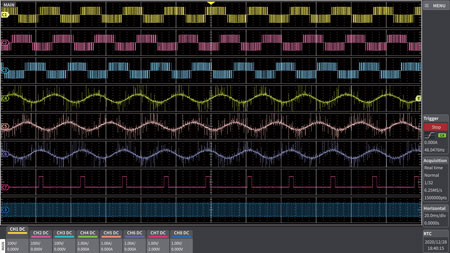

■	Max. 8 Analog channels

	Frequency bandwidth: 1GHz/500MHz/350MHz Max. Sample Rate: 5GS/s (Channel combined)   2.5GHz (all CHs) Max. 8ch Waveform calculation
Application:
It can be used in the R&D, Production and Quality assurance Dept. of automobiles, machinery, robotic and, production equipment such as voltage, current, sensing and waveform measurement for ECU signal of automotive inverter.

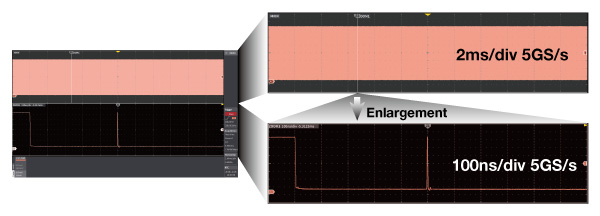

■	Memory Length 120Mpoints for all models

Memory Length max. 120Mpoints (Channel combined), 60Mpoints (all CHs) The Replay Waveform (Memory split display) feature allows you to see changes in the waveform later.
Application:
It can be used in the R&D, Production and Quality assurance Dept. behavior of the device during power-on, verification of the stability of the power converter, and observation of changes in encoder pulse waveform distortion.

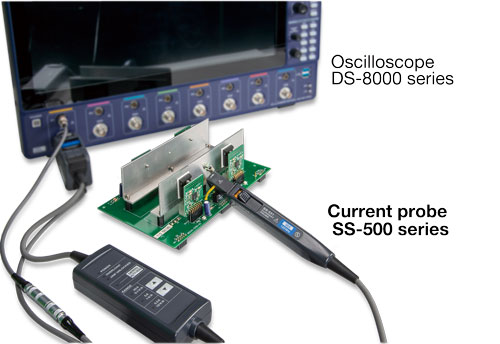

■	Power supply for probes

This series are equipped with a power supply for the active probe. Current and differential probes can be used without an external power supply. Some probes require a conversion cable.

■	High-Speed Waveform Data Transfer

	This series provide high-resolution waveform transfer and fast transfer of measurement parameters.
	● To improve the productivity by shortening the    tact time ● This series are ideal for high-speed transmission    of waveform data for simulation.

■	Off-Line Viewer (DS-8000 Viewer)

It is a software that allows you to view and analyze stored waveforms on a PC in the same way as an oscilloscope. After getting data using an oscilloscope, the Off-Line Viewer can be used to review, analyze, and organize the data to improve the efficiency.

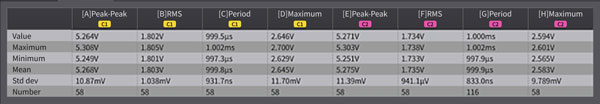

■	Parameter measurement

With 27 parameters that can display minimum, maximum, standard deviation, and average values as well. The time axis parameters can be measured for all waves being measured. Up to 8 parameters can be displayed.

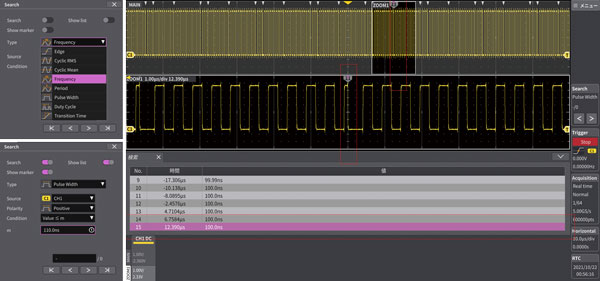

■	Waveform search function

With the waveform search function you can set up any search criteria from multiple waves captured in long memory.
