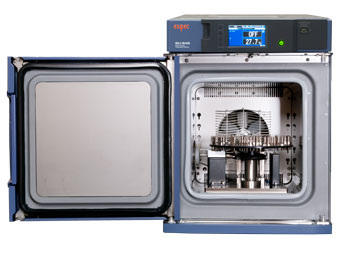

B-H Analyzer - Temperature scanner system
| Temperature range : -30°C to 150°C, Sample 41pcs, max. |
||
 |
|
|
Specifications
| Item | SY-320A | SY-321A | |
|---|---|---|---|
| Scanner chamber unit | Input voltage | AC100V (50/60Hz) | |
| Input current | 12.5A, max. | 21A, max. | |
| Temperatur erange | -30°C to +150°C | ||
| Scanner mechanism unit | Input power | AC100V (50/60Hz) to AC120V (50/60Hz) | |
| Power consumption | 28VA | ||
| Test frequency range | 10Hz to 5MHz with SY-8218 10Hz to 1MHz with SY-8219 |
||
| Samples | 20pcs.,max. | 41pcs., max. | |
| Input current | ±6A, max. | ||
| Input voltage | ±200V,max. | ||
| Dimensions (mm) Weight |
Approx. 543W x 695L x 620H Approx. 85kg |
Approx. 640W x 920L x 660H Approx. 135kg |
|
| Accessories | Reference sample, Chamber cable (SY901),Turn table*, GPIB cable (1meter), Power cable, Operation manual |
||

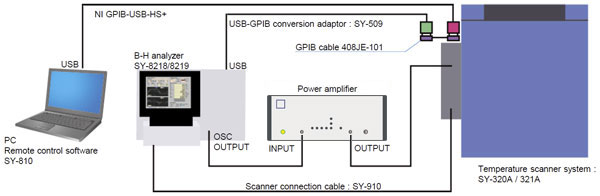

Remote control system configurations
 |

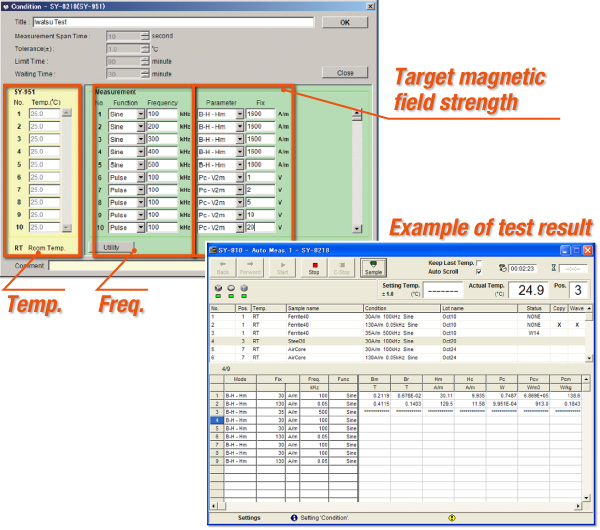

Remote Control Software : SY-810
 |
Spare parts for temperature scanner system
 |

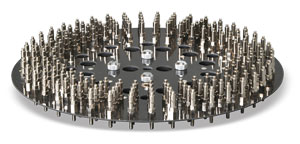

Turntable (for setting samples on scanner mechanism) SY-510 (for SY-320A) SY-511 (for SY-321A) |
 |
Spare connection pin set SY-512 (for SY-320A/321A) |
