Best suited for the chips with very high voltage and very high current, CS-3100 + UHV + HC

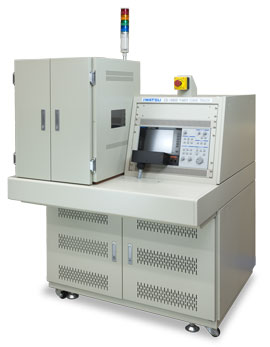

Semiconductor Curve Trace CS-10400 Max. Peak Voltage : 10kV（+ DC Only） Max. Peak Current : 4,000A Semiconductor Curve Trace CS-10800 Max. Peak Voltage : 10kV（+ DC Only） Max. Peak Current : 8,000A Semiconductor Curve Trace CS-12800 Max. Peak Voltage : 12kV（+ DC Only） Max. Peak Current : 8,000A Semiconductor Curve Trace CS-15800 Max. Peak Voltage : 15kV（+ DC Only） Max. Peak Current : 8,000A

Optional Pulse Unit

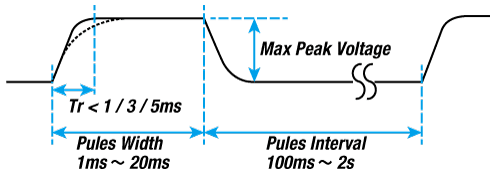

This optional unit minimizes parameter variation on devices caused by heat. Pulse rise time can be configured for 1, 3, or 5ms; pulse duration from 1ms to 20ms; and pulse interval from 100ms to 2 seconds. This option is installed at the factory. Any changes desired after purchase will require return the unit back to IWATSU factory.
