Semiconductor Curve Tracer

Multipurpose Unit Measures
Leakage Current and High Current.
Auto Measurement Supported! | ![]() |
The best solution to properly measure semiconductors such as IGBTs, MOSFETs, TRANSISTORs and DIODEs from small to large quantities. |

Advanced functions for your ease of use

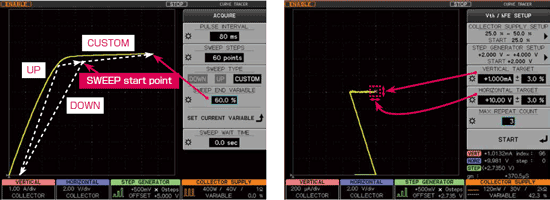

The configuration is displayed in the setup display area under CONFIGURATION key sets. |
Appropriate configuration can be selected for each device test. |
![]() |

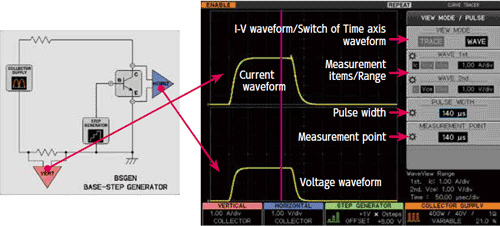

Confirm applied voltage and current with waveforms in Wave mode. | |
The pulse width and the measurement point can be specified even when you are confirming
the applied waveform (current and voltage) to the device based on the time axis as with
oscilloscopes. By confirming the waveform, appropriate pulse width and measurement timing can be decided. Since our products give no waveform influences such as probing of oscilloscopes, etc., abnormal signals are confirmable. This function also helps to confirm the abnomalies caused by heat such as a oscillation, etc. |
|
![]() |

Full detailed automation with PC

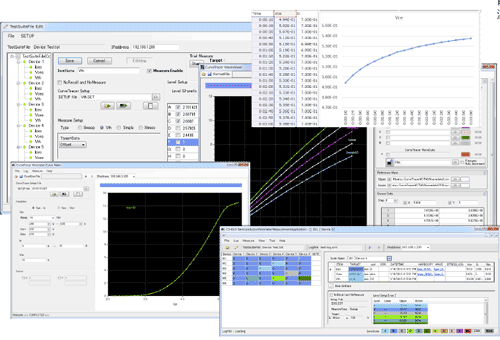

Semiconductor parameter measurement with CS-810 (optional) | |
This software application performs various kinds of auto measurements through remote control of the main unit. | |
![]() |

USB memory | |
Graphic Images, Data, and Setup conditions can be saved.
Graphic Images can be saved in various formats: TIFF,BMP,PNG. Black/White selection for color of background, color/monochrome selection are available. Waveform data can be saved in Text and in Binary at the same time.vvvv |
![]() |

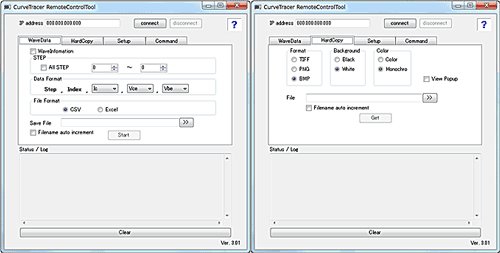

Remote Control tool (free download) Click here to download |
Where security policy restricts use of USB, the remote control tool for PC can be used. |
![]() |

Ethernet as | |
standard (rear panel) | ![]() |

Function introduction

With combination of semiconductor parameter measurement software CS-810, the curve tracer supports Auto stress test. |
![]() |

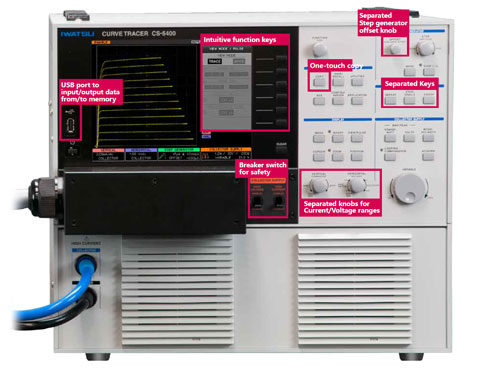

Separate knobs for intuitive operations

![]() |
Product name | Model | Peak Voltage and Current |
---|---|---|
![]() Semiconductor Curve Tracer CS-3100 |
CS-3100 | HC mode not available |
![]() Semiconductor Curve Tracer CS-3200 / 3300 |
CS-3200 | Max. Peak Voltage : 3,000V (HV mode) Max. Peak Current : 400A (HC mode) |
CS-3300 | Max. Peak Voltage : 3,000V (HV mode) Max. Peak Current : 1,000A (HC mode) |
|
![]() Semiconductor Curve Tracer CS-5000 series |
CS-5100 | HC mode not available |
CS-5200 | Max. Peak Voltage : 5,000V (HV mode) Max. Peak Current : 400A (HC mode) |
|
CS-5300 | Max. Peak Voltage : 5,000V (HV mode) Max. Peak Current : 1,000A (HC mode) |
|
CS-5400 | Max. Peak Voltage : 5,000V (HV mode) Max. Peak Current : 1,500A (HC mode) |
|
![]() Semiconductor Curve Tracer CS-10000 series |
CS-10400 | Max. Peak Voltage : 10,000V (HV mode) Max. Peak Current : 4,000A (HC mode) |
CS-10800 | Max. Peak Voltage : 10,000V (HV mode) Max. Peak Current : 8,000A (HC mode) |
|
CS-12800 | Max. Peak Voltage : 12,000V (HV mode) Max. Peak Current : 8,000A (HC mode) |
|
CS-15800 | Max. Peak Voltage : 15,000V (HV mode) Max. Peak Current : 8,000A (HC mode) |
