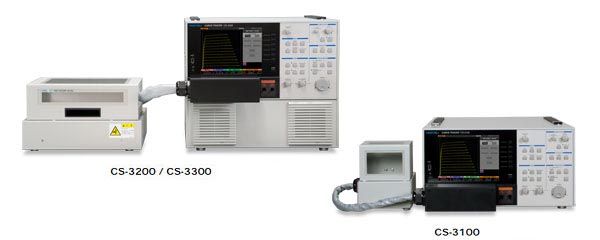

Standard models suitable for parameter measurement of various semiconductors including IGBTs, MOSFETs, transistors and diodes, etc..

Max. Peak Voltage : 3,000V（HV mode） Max. Peak Current : 1,000A（HC mode） Equipped all models with LEAKAGE mode (Cursor resolution 1pA） USB port for display hardcopy, waveform data (CSV format) and measurement setup SAVE/RECALL LAN interface for Remote Control

Easy measurement screen

Configuration screen	Example of V-I characteristic of transistor (TRACE mode)
Vbe · lc waveform (WAVE mode) in high current pulse mode
