Application software : CS-810
semiconductor parameter measurement

Comparison among the curves

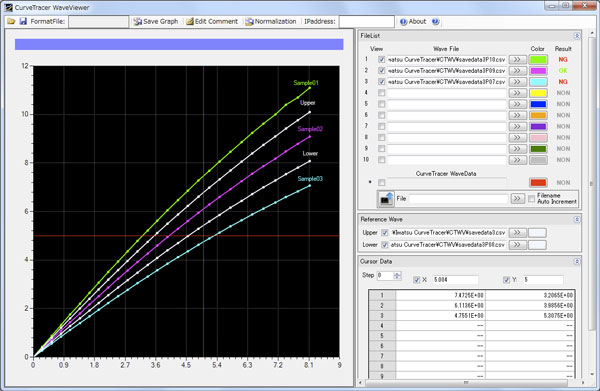

Comparison between the waveforms and Judgment functions

Waveform display CSV files stored during past tests, recall-waveforms stored in Curve tracer, and the waveforms currently monitored can be compared on the same screen up to 10 waveforms. Re-scaling function The displaying waveform can be stored in a CSV file at an arbitrary interval in voltage axis. Annotations Annotations can be attached to the curves respectively. Saving the images Saving the images in various image format (PNG/BMP/JPG/TIFF）with a set of cursor values. A selection of Graph styles -Settable items Chart title, background color, cursor color, line style (solid, dotted, broken) For X and Y axes: Title, what data to be assigned, Scale (Log, linear) For Y axis only, intervals, min value, max value and grids.

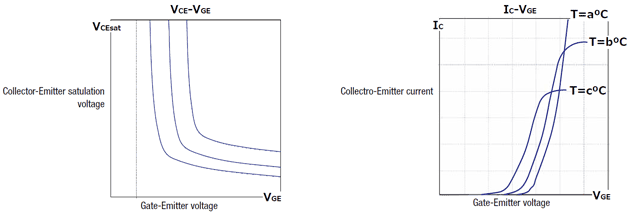

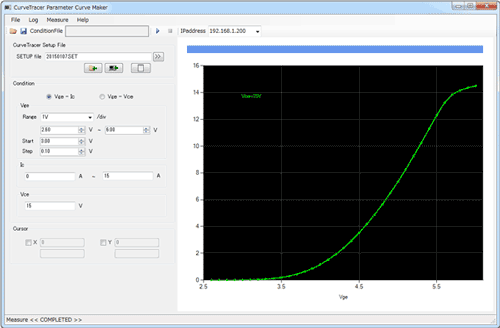

Auto measuring function for the transfer characteristics (VGE-IC/VGE-VCE)

Various formats to save curves for characteristics ・Save the measured characteristics to CSV files. ・Save the curve image as PNG/BMP/JPG/TIFF Cursor function Cursors are displayed in X axis and Y axis interpolated value is displayed. Customizable chart area Chart title, axes label, background-color, and the axes ranges are all customizable. Load/Save function of Configurations This software can load/save the configurations for characteristics measurement and the customize done to the chart area.
